Search found 564 matches

by SAEED_KIZZY
Wed Apr 30, 2025 2:03 pm
Forum: Kizashi Technical Support & Problem Troubleshooting
Topic: Both rear speakers dead
Replies: 3
Views: 86

Re: Both rear speakers dead

Read the service manual first if you are a DIY. You can download it from :
viewtopic.php?f=13&t=4786&start=20

this file is in pdf and good start: Kizashi Repair Manual 2010-2011.pdf

You can start from a speaker at the door, of course.
by SAEED_KIZZY
Tue Apr 29, 2025 7:20 pm
Forum: Kizashi Technical Support & Problem Troubleshooting
Topic: Both rear speakers dead
Replies: 3
Views: 86

Re: Both rear speakers dead

Hi, Remove HU and disconnect G248 connector(big connector) from HU and use simple multimeter in ohm mode and check the 6/16 pin for rear right speaker there should be around 4 ohm or 8 ohm if it open circuit you have blown speaker or wiring problem and should investigate by pulling the door panel ou...
by SAEED_KIZZY
Sat Apr 26, 2025 1:19 pm
Forum: Chat About the Kizashi
Topic: Sayonara Kizashi!
Replies: 2
Views: 151

Re: Sayonara Kizashi!

Good for your nephew KuroNekko. I am sure he won't need to go to the mechanic for the next 10 years or more :D.
As for the Maza CX-5, a cool-looking car, congratulations.
by SAEED_KIZZY
Sun Mar 30, 2025 8:47 am
Forum: Chat About the Kizashi
Topic: What Did You Do With Your Kizashi Today?
Replies: 2158
Views: 1913339

Re: What Did You Do With Your Kizashi Today?

Hi Ronzuki,
Good to see you again. yep another original owner 210,100km still strong :drive:
by SAEED_KIZZY
Thu Mar 20, 2025 8:39 am
Forum: Kizashi Technical Support & Problem Troubleshooting
Topic: Need Help with Water Pump
Replies: 3
Views: 2754

Re: Need Help with Water Pump

Hi,
17400-78894-000 is discontinued by suzuki but a new part number is available:
17400-78895-000
but to be sure try to confirm with your local dealer.
by SAEED_KIZZY
Mon Mar 17, 2025 7:53 am
Forum: Suzuki Kizashi Gallery and Videos
Topic: My Kizzy
Replies: 113
Views: 224653

Re: My Kizzy

by SAEED_KIZZY
Fri Feb 28, 2025 5:15 pm
Forum: Kizashi Technical Support & Problem Troubleshooting
Topic: Random engine mount with nothing attached
Replies: 5
Views: 2782

Re: Random engine mount with nothing attached

Hello, it's not an engine mount. It is a subframe damper according to Megazip's site and I don't know it's purpose, but it's there in my car too and I never check it!
by SAEED_KIZZY
Mon Feb 24, 2025 2:27 pm
Forum: Kizashi Technical Support & Problem Troubleshooting
Topic: Engine cooling fan not engaging when engine is at 101°c
Replies: 10
Views: 3242

Re: Engine cooling fan not engaging when engine is at 101°c

as oldtech said coolant pressure can cause abnormal situations I just saw your post about 101 C coolant temp and want to remind you that the temperature should be at 102.5 C to turn the fan on.
by SAEED_KIZZY
Sat Feb 22, 2025 6:48 pm
Forum: Kizashi Technical Support & Problem Troubleshooting
Topic: Engine cooling fan not engaging when engine is at 101°c
Replies: 10
Views: 3242

Re: Engine cooling fan not engaging when engine is at 101°c

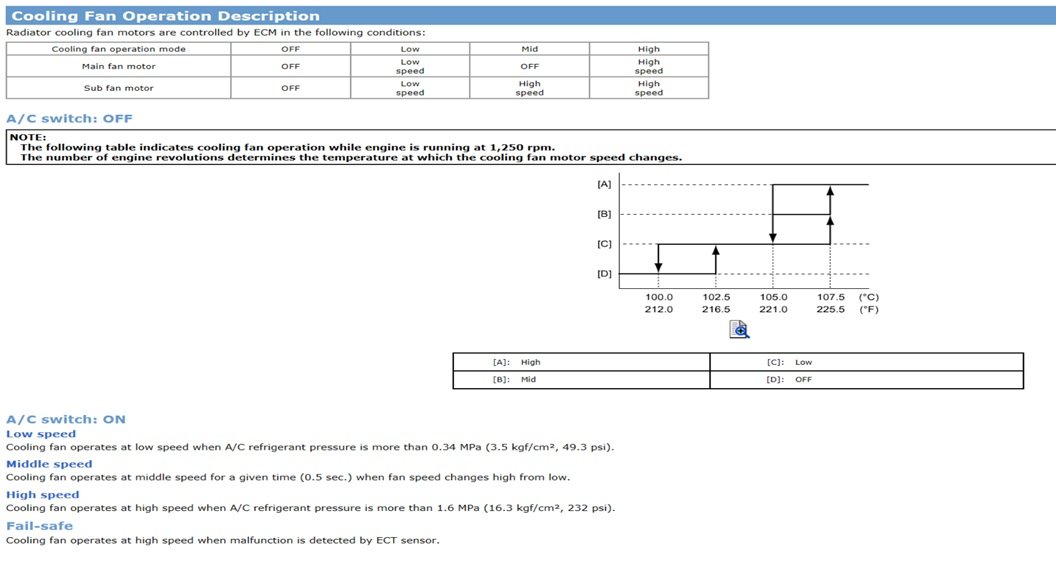

Hi, ECU is not engaging the radiator fan until 102.5 C after that fan is in low-speed mode here is a graph of operation from the service manual:
