Acc. Wire under hood.

metatrox · Sun Sep 19, 2010 5:31 pm

Anyone know if there is a good wire or fuse that I can tap into that comes on when the vehicle is turned on?

I checked all the fuses in the fuse box under hood and everything has power all the time.

My last resort will be tap into one of the headlights.

Btw, anyone know how the high/low beams work? I see 6 wires going to that one ballast. I assume 2 for that little orange bulb and 4 for the main bulb. Is there something online that increases voltage for high beams or do 2 wires provide low and 2 wires provide high?

TheHolyGhost · Mon Sep 20, 2010 12:13 am

The power outlet in the center console comes on when the car is turned on, maybe you can use that one.

metatrox · Mon Sep 20, 2010 1:30 am

Yeah, I was hoping to find something under the hood. Less running of wires

KCKizashi · Mon Sep 20, 2010 2:44 pm

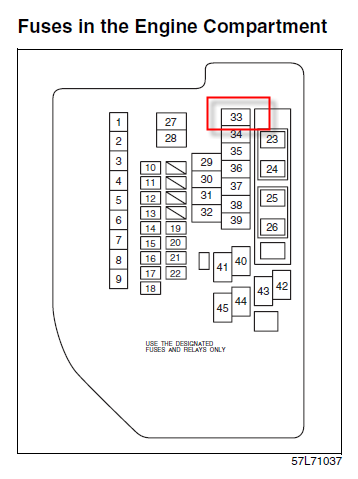

In the fuse box under the hood, driver's side... Item #33 is the Rear Defogger relay switch. Pull that and you'll have 4 tabs. the slot closest to the firewall is powered when engine is running. I've slipped a wire with exposed wire into the slot, then pressed the Relay back down firmly.

metatrox · Mon Sep 20, 2010 3:40 pm

Awesome! You saved me. I was gonna have to tap into the lights. Thanks a bunch!

KCKizashi · Mon Sep 20, 2010 4:36 pm

Metatrox wrote:Awesome! You saved me. I was gonna have to tap into the lights. Thanks a bunch!

I believe it's only a 15amp relay so if you're powering anything greater it may trip the relay, but I ran the defogger this morning with no issues

metatrox · Mon Sep 20, 2010 5:35 pm

Just some LEDs so I shouldn't have a problem.

TheHolyGhost · Mon Sep 20, 2010 6:49 pm

What are you doing if you don't mind my asking? Unless you want it to be a surprise.

metatrox · Mon Sep 20, 2010 8:19 pm

I'll have photos tonight
