Need help with Fuse location

Anything related to the Kizashi can go here, but please look at the other headings first. Your topic may fit better under something else.
Post Reply
Rokko
Posts: 11
Joined: Thu Apr 16, 2015 5:58 pm

I need help finding a fuse diagram to show me where the fuse powering the driver side power seat is. Unnfortunately online research is only turning up fuse diagrams for other cars, and I don't have an owners manual for my current car.
Top
Sluggo
Posts: 134
Joined: Fri Nov 30, 2012 11:47 pm

The owners manual shows its in the fuse box in the engine compartment. Main fuse box.
Fuse #8 RED(50) Fuse Name BTRY2 . Protected Circuit- Power Window, Power seat.
______________________________________________________
Top
Beeman1019
Posts: 4
Joined: Mon Oct 08, 2018 4:41 pm

i've removed the lower panel under the glove box. the fuses are not visible when looking up. arggghhh.
Top
Tom Kizzie
Posts: 210
Joined: Thu Jan 18, 2018 11:04 am

Engine compartmant... Right side
kizashi 6mt black
Top
old tech
Posts: 792
Joined: Mon Apr 23, 2018 1:51 pm
Location: n/w pennsysvania

Ive had this probem before. The fuse is above passenger right foot on the left hand drive cars. The intermittent short was found in the driver seat just behind switch, harness rubbing seat track.
Top
bdleonard
Posts: 274
Joined: Mon Apr 22, 2013 4:39 am

Beeman1019 wrote:i've removed the lower panel under the glove box. the fuses are not visible when looking up. arggghhh.
Just went through checking all of the fuses before installing a set of power seats. After taking off the panel under the glove box, look up, and towards the outside of the vehicle.
Top
KlutzNinja
Posts: 296
Joined: Wed Dec 04, 2019 6:58 am

Did you ask Jeffrey Wayne about this on the Kizashi Facebook group (Kizashi Nation, I think), where he’s active? Because he just uploaded a video about this today and it would be one heck of a coincidence considering it covers exactly what you’re seeking.

Current: Blue 2018 Mazda 3 GT 5-Door
Previous: Blue 2010 Ford Focus SES,
Black 2013 Kizashi Sport GTS-L (CVT; FWD)(RIP)
Top
User avatar
SAEED_KIZZY
Posts: 564
Joined: Wed Sep 13, 2017 2:31 pm

Beeman1019 wrote:i've removed the lower panel under the glove box. the fuses are not visible when looking up. arggghhh.
If your car does not have a power seat and Rockford audio system there is no maxi-fuse on fuse box like my car.
Top
bdleonard
Posts: 274
Joined: Mon Apr 22, 2013 4:39 am

SAEED_KIZZY wrote:
Beeman1019 wrote:i've removed the lower panel under the glove box. the fuses are not visible when looking up. arggghhh.
If your car does not have a power seat and Rockford audio system there is no maxi-fuse on fuse box like my car.
On the US spec Kizashi (at least) this is not true. My manual seat vehicle had all of the fuses and wiring for both the front power heated seats already in place.
Top
User avatar
SAEED_KIZZY
Posts: 564
Joined: Wed Sep 13, 2017 2:31 pm

bdleonard wrote:
SAEED_KIZZY wrote:
Beeman1019 wrote:i've removed the lower panel under the glove box. the fuses are not visible when looking up. arggghhh.
If your car does not have a power seat and Rockford audio system there is no maxi-fuse on fuse box like my car.
On the US spec Kizashi (at least) this is not true. My manual seat vehicle had all of the fuses and wiring for both the front power heated seats already in place.
Actually bdleonard I wanted to ask you about your new power seat wiring. Suzuki must add those fuses and connectors for future upgrades I guess.

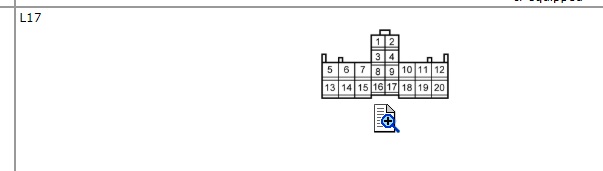

please correct me if I am wrong 'so in order to upgrade manual seat to power seat beside those maxi fuses in Relay Box No.2 you need additional connector under each seat (L17 Connector)'
