install OEM paddle shifter on Kizashi DLX steering wheel
-
SAEED_KIZZY
- Posts: 564
- Joined: Wed Sep 13, 2017 2:31 pm
I managed to buy a used paddle shifter from eBay last month. my car did not equip with a paddle shifter and I always wanted to have one, unfortunately, the cost for a new one is around 850$ and used one for 200$ so I found a used paddle shifter from eBay 40$ which is the acceptable price so I bought it.

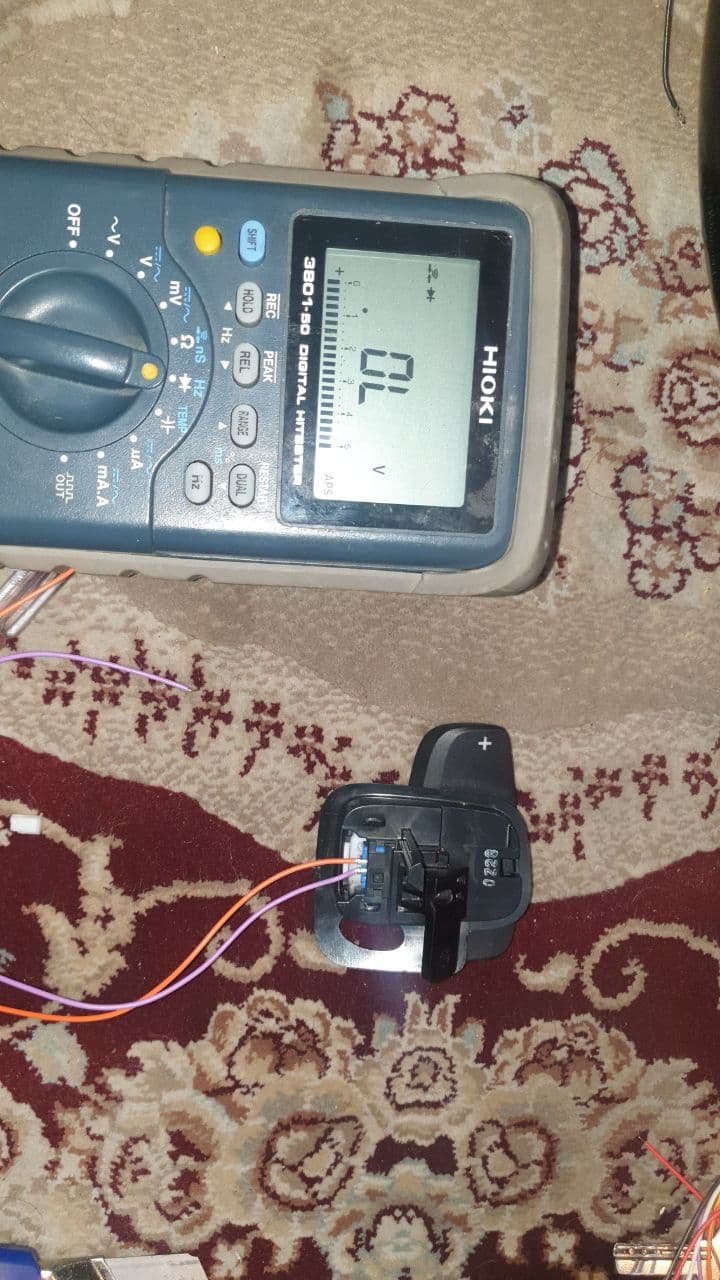

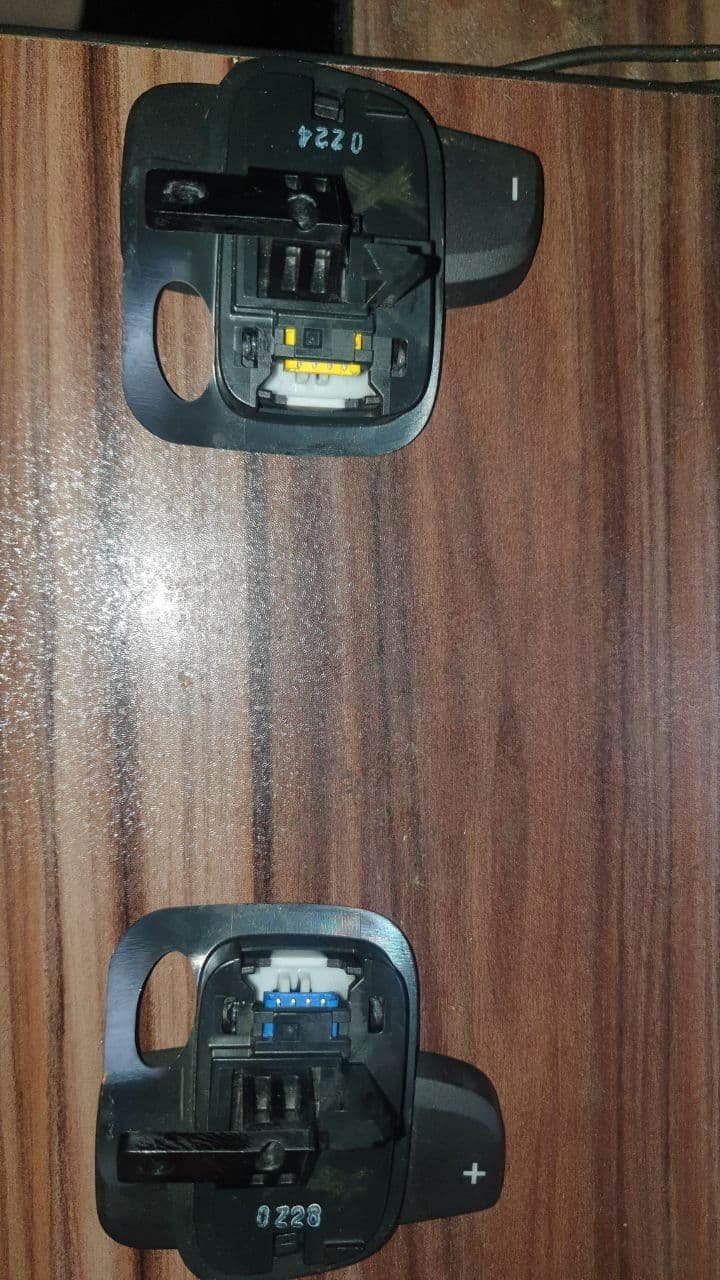

The paddle shifter uses a 4 pin connector, pin 2 and 3 are connected when the paddle is pressed.
today to install it on my car. here is how I do it

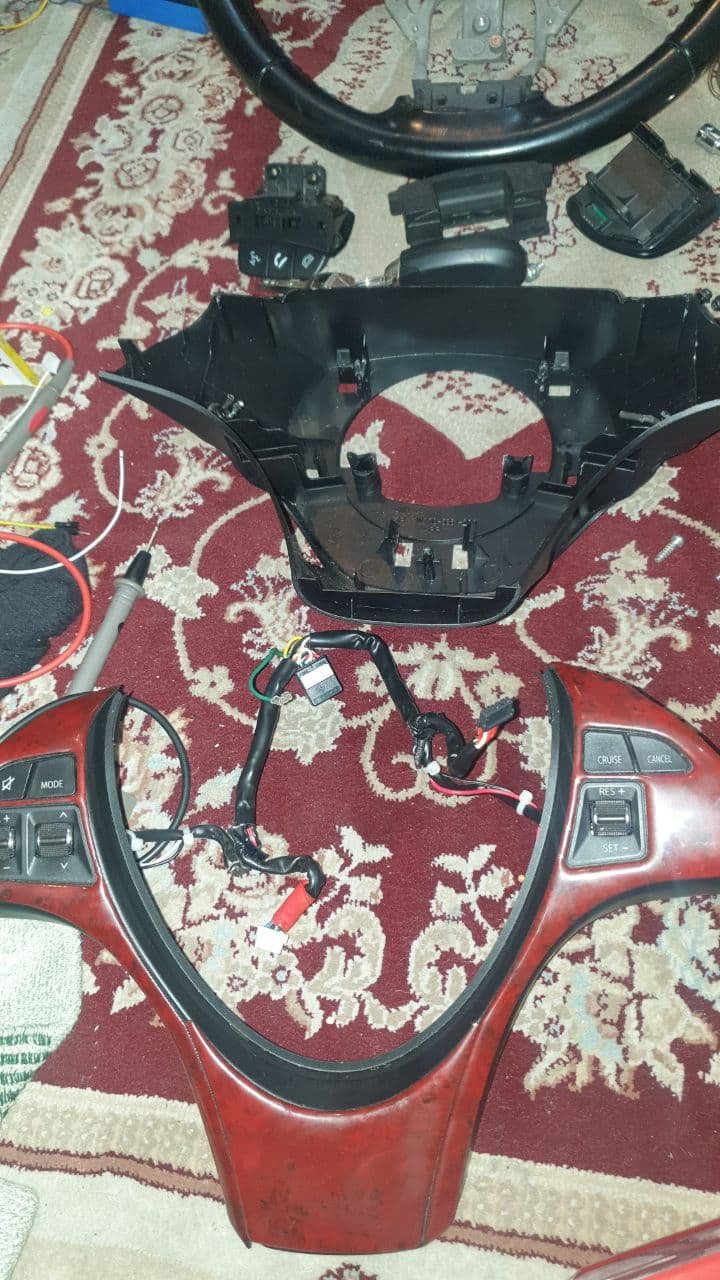

1- remove the steering wheel to do that I use a special steering wheel remover.

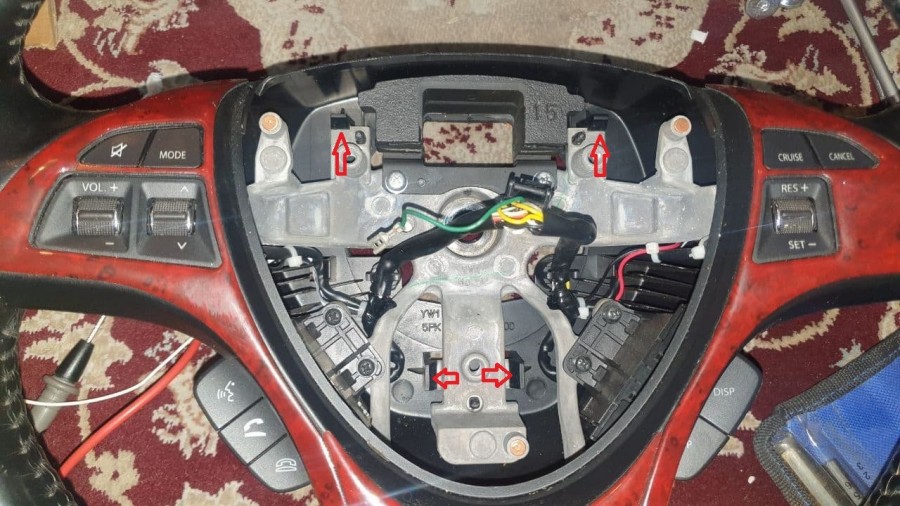

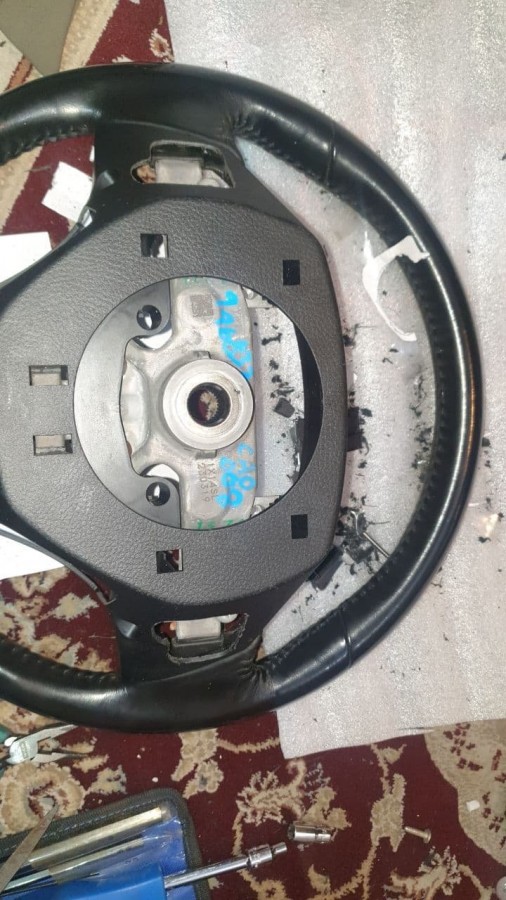

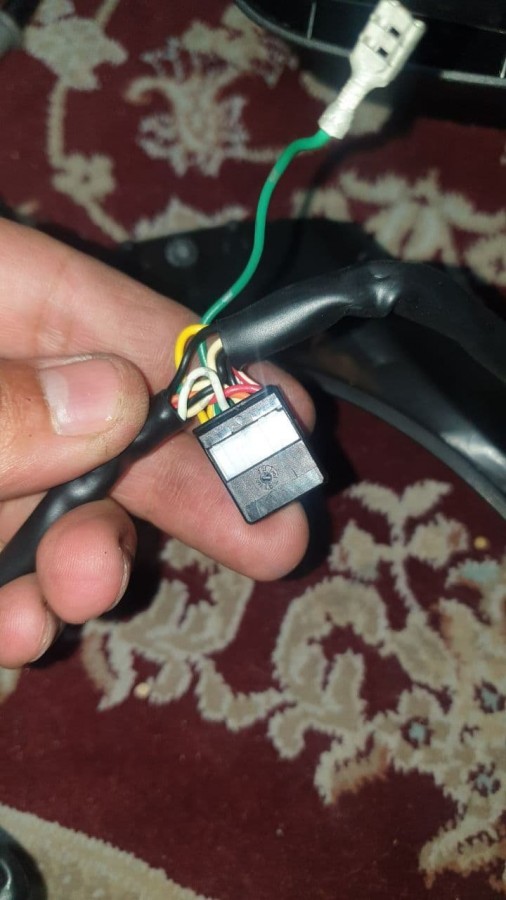

2- remove 3 bolts of the horn plate. 3- remove the plastic back cover by releasing 4 claws 4- remove the front plastic cover by unscrew 4 self-tapping bolts 5- remove knobs and cables 6- now time for wiring: I add 2 wires into clock sprint connector pin 8 and 11 and also tap into pin 2 for GND wire. wire 8,2 for up(or down I do not remember) and 11,2 for down(up)

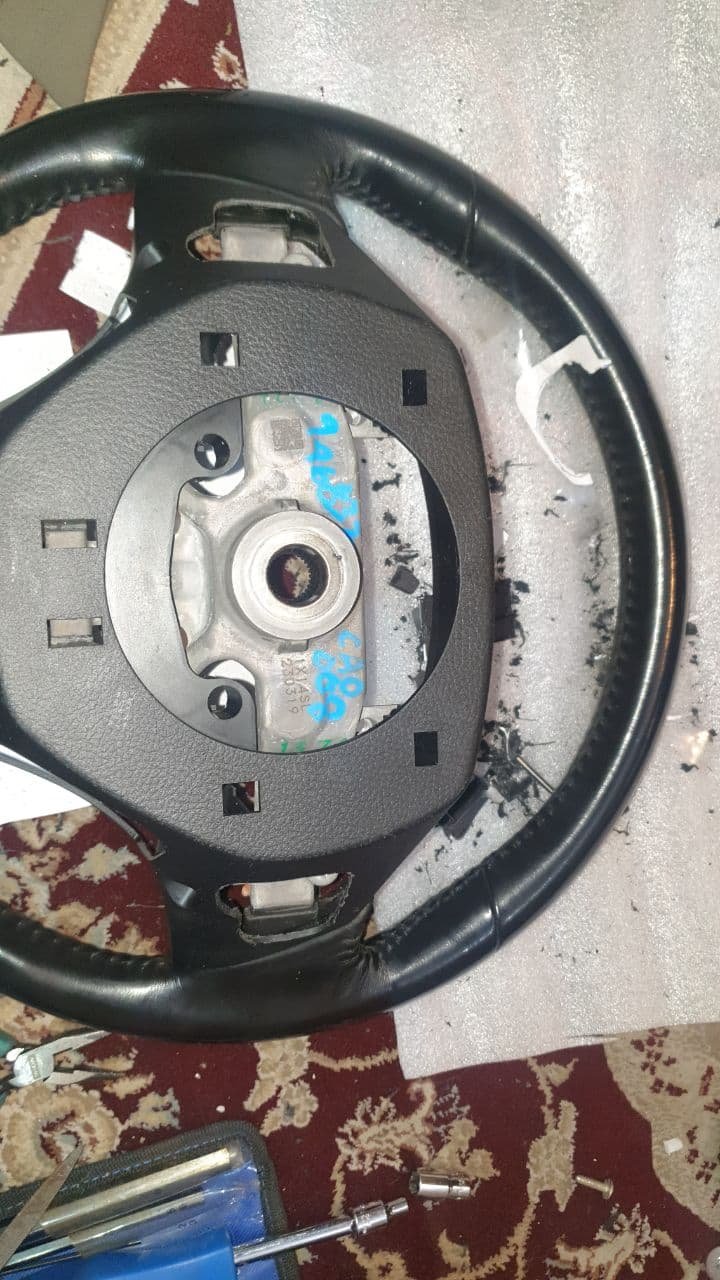

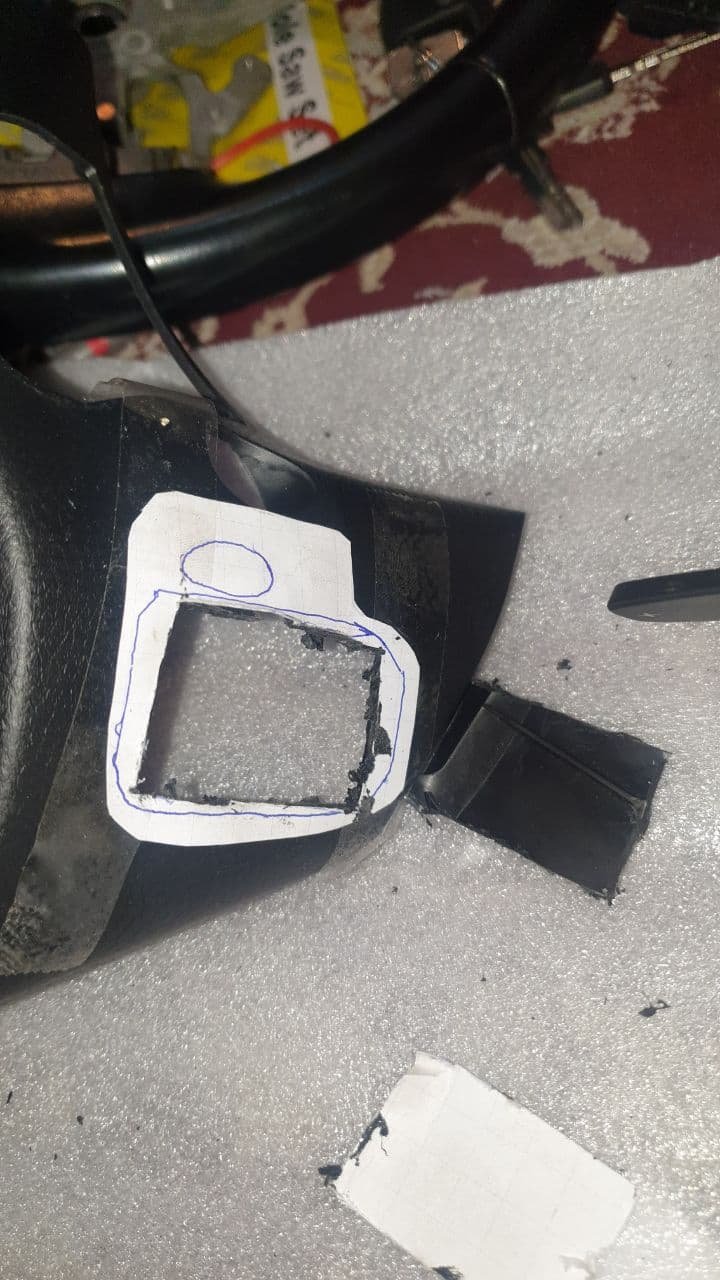

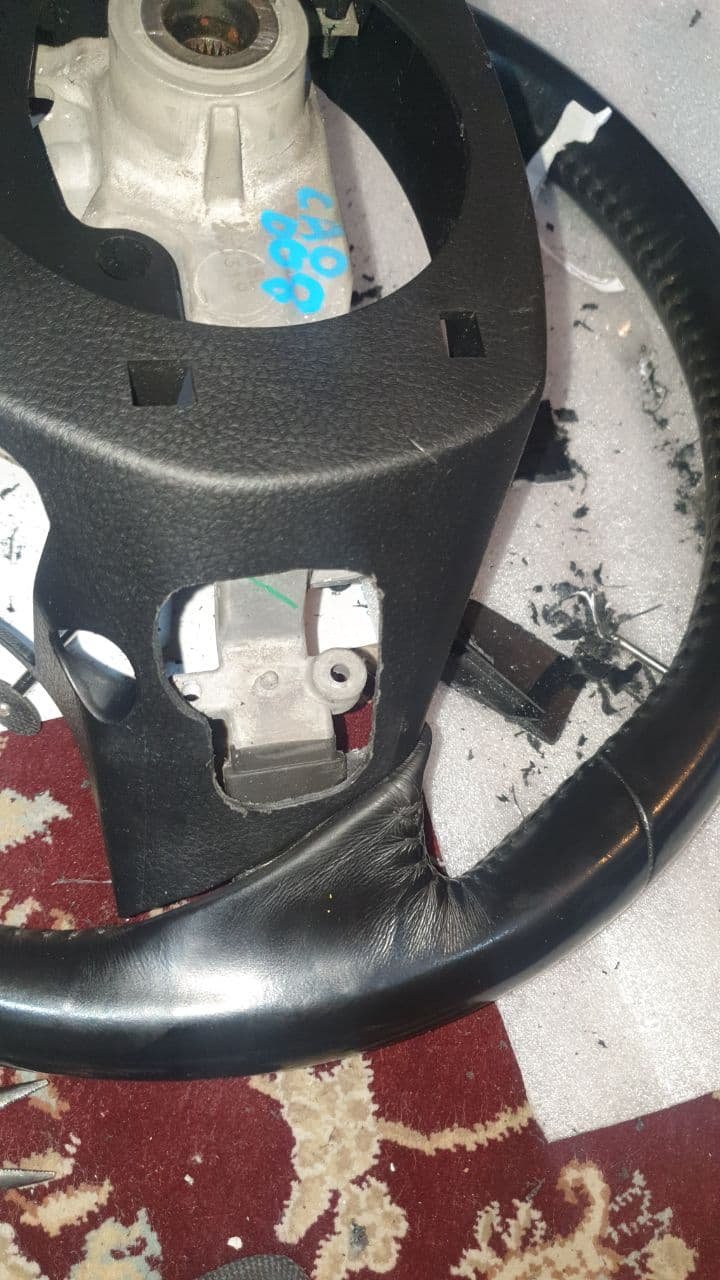

7- next comes the fun part cutting back plastic cover to install paddle shifter

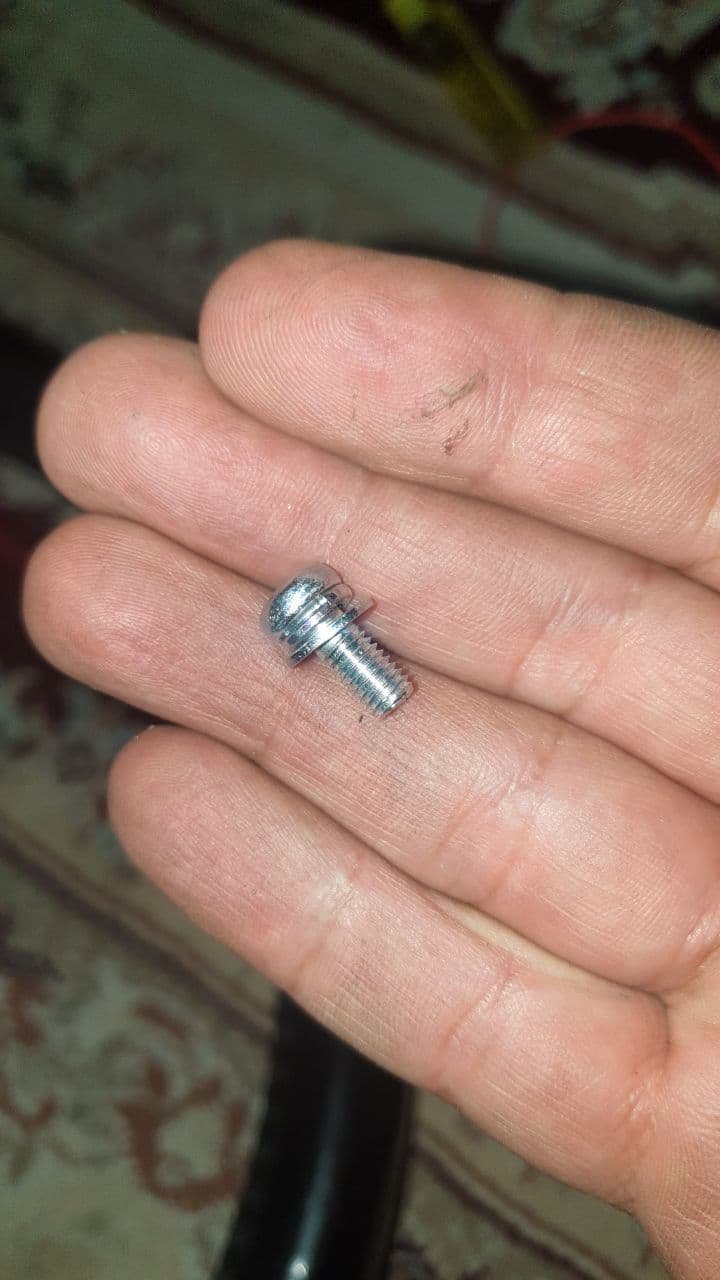

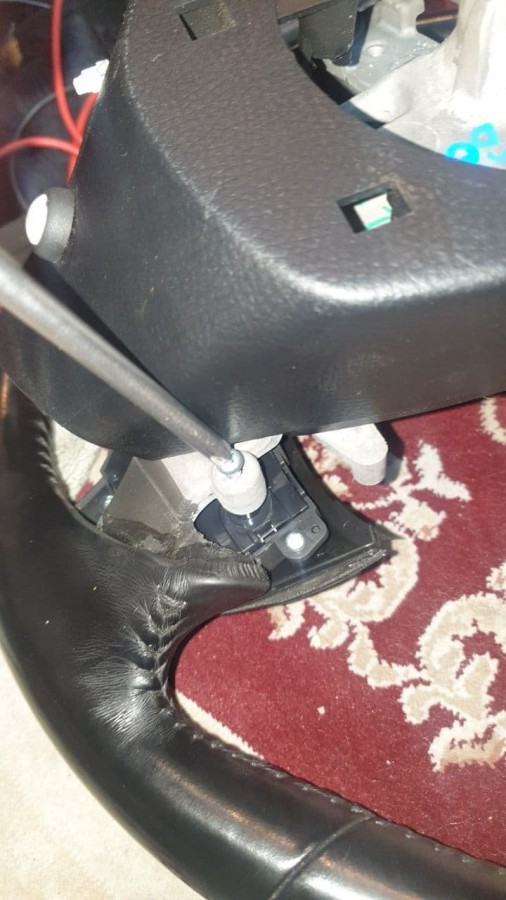

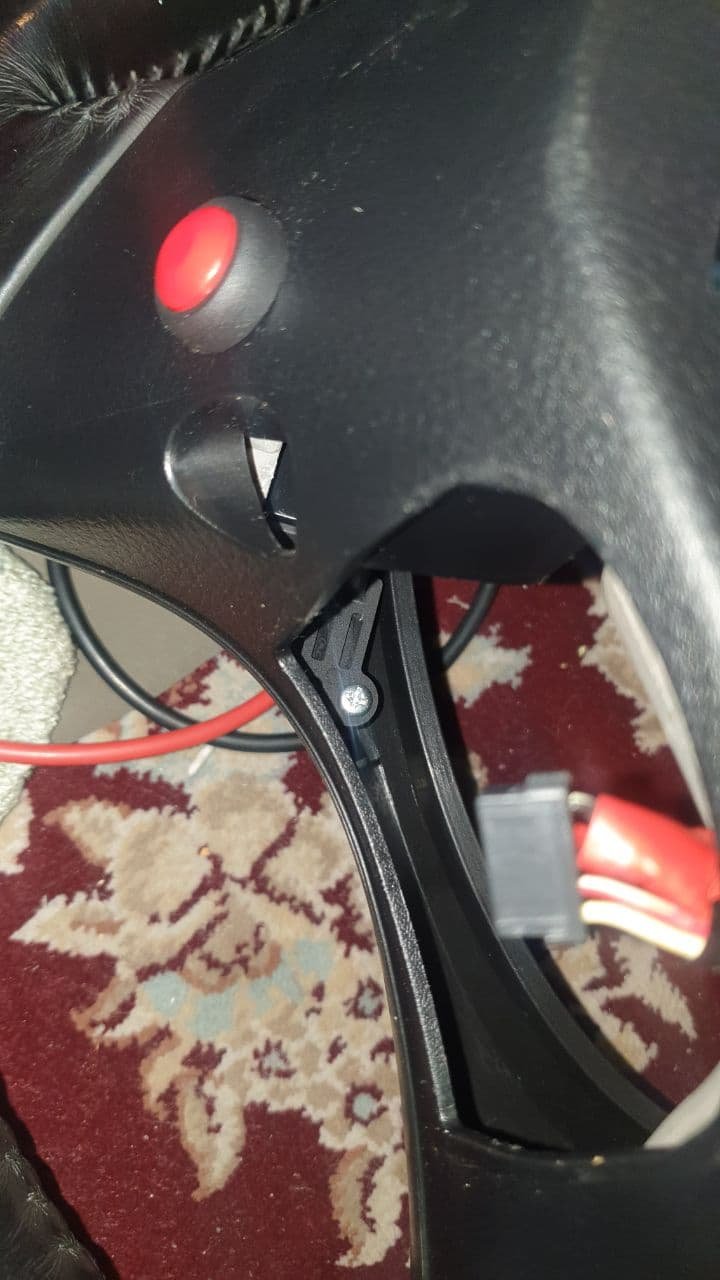

8- screw the paddle on the steering wheel with this bolt (need 2 bolts)
9- reinstall steering wheel parts and install them on the car

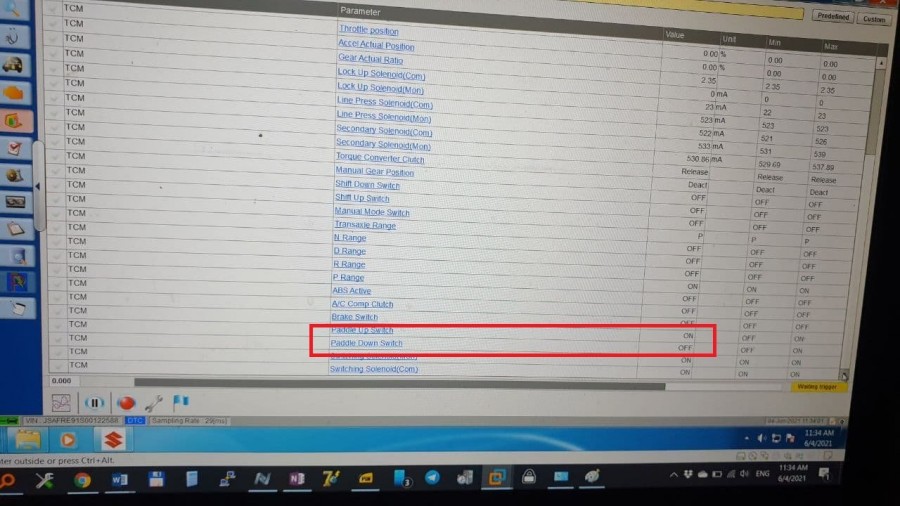

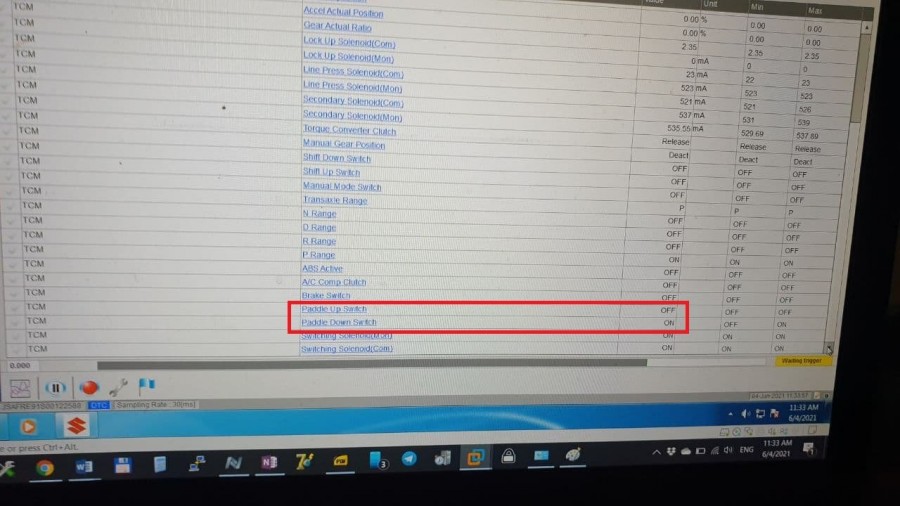

and for testing, I connect scan tool SDT2 and go to TCM and see up/Down paddle shifter status while pressing them

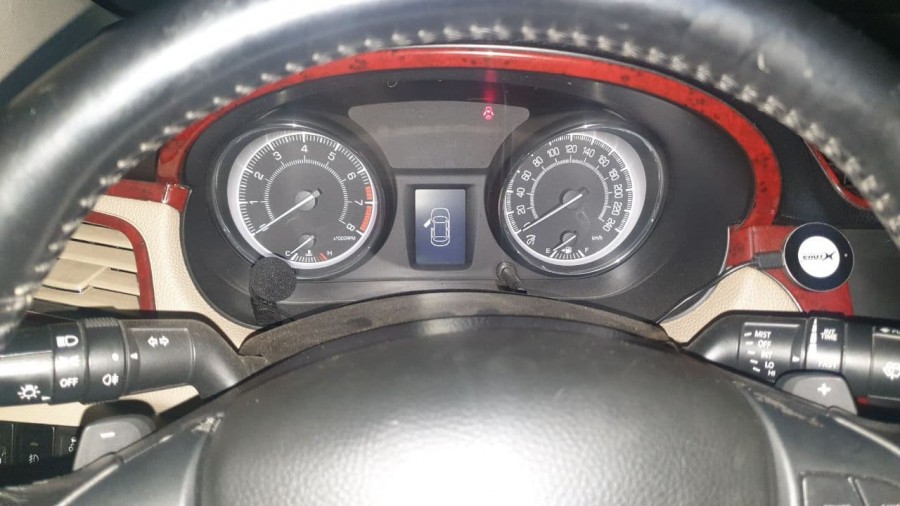

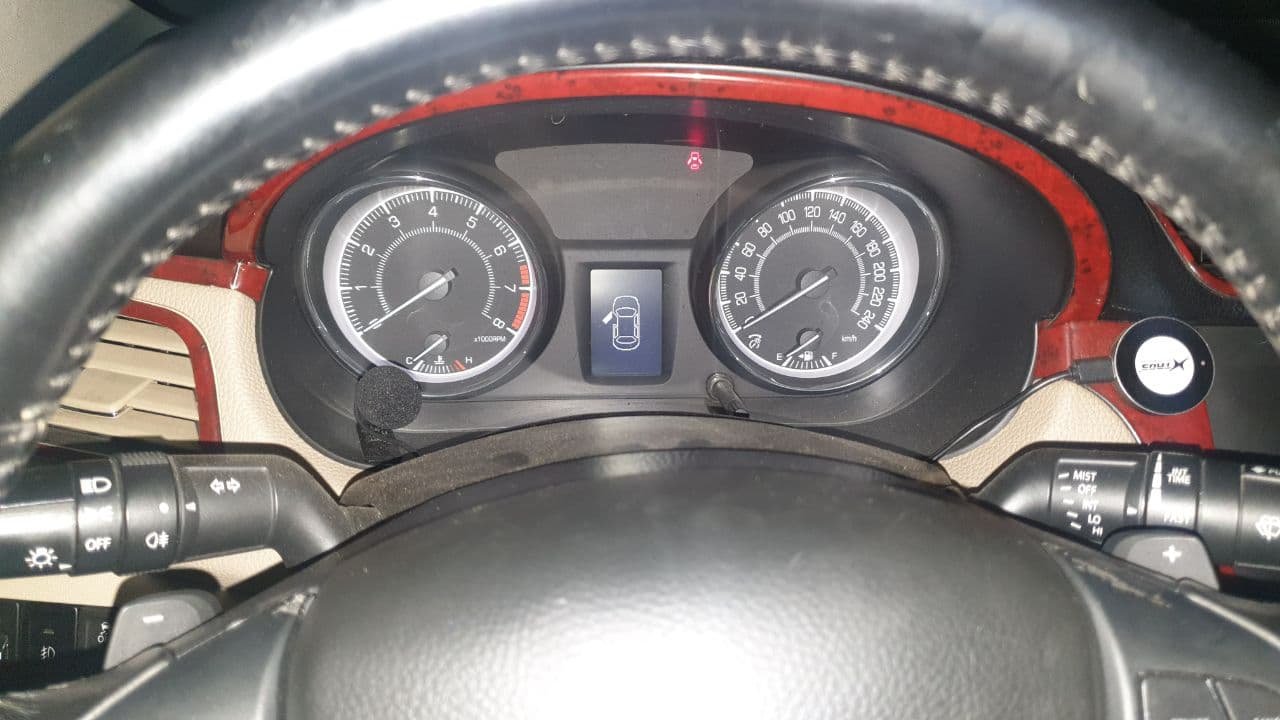

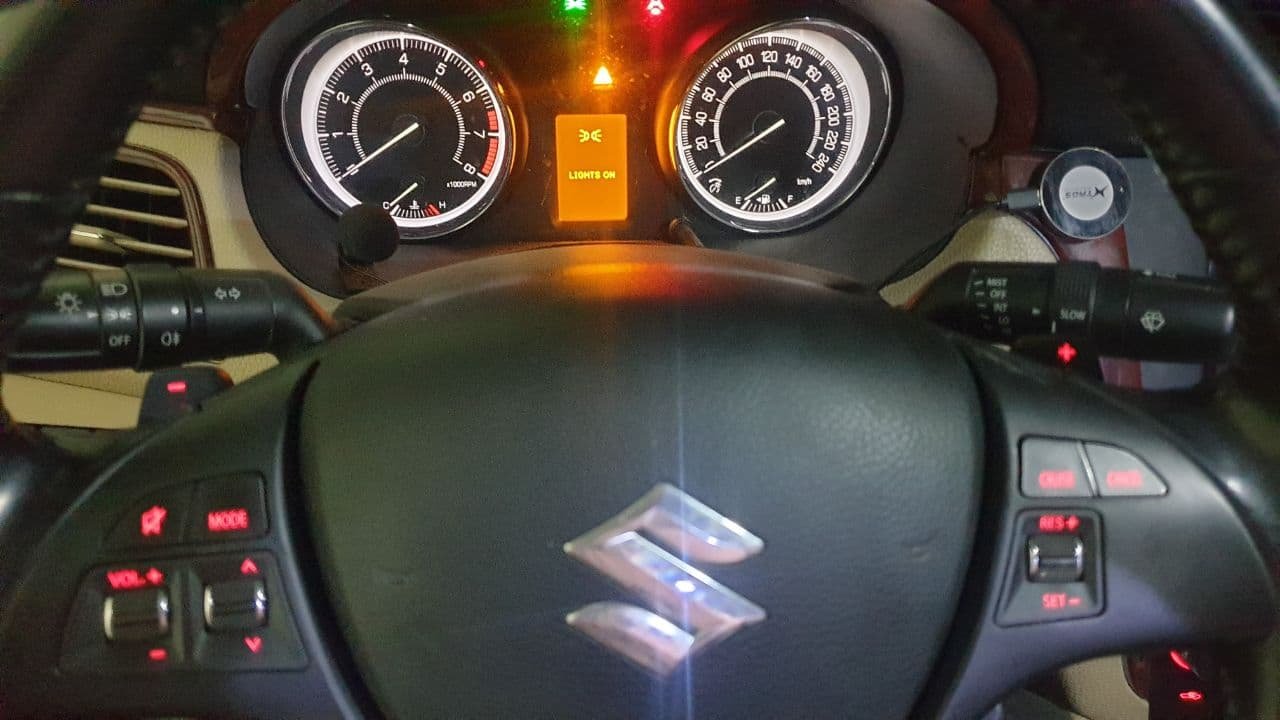

and then road tested it worked great and it feels good
1- remove the steering wheel to do that I use a special steering wheel remover.
2- remove 3 bolts of the horn plate. 3- remove the plastic back cover by releasing 4 claws 4- remove the front plastic cover by unscrew 4 self-tapping bolts 5- remove knobs and cables 6- now time for wiring: I add 2 wires into clock sprint connector pin 8 and 11 and also tap into pin 2 for GND wire. wire 8,2 for up(or down I do not remember
) and 11,2 for down(up)
7- next comes the fun part cutting back plastic cover to install paddle shifter
8- screw the paddle on the steering wheel with this bolt (need 2 bolts)
9- reinstall steering wheel parts and install them on the car
and for testing, I connect scan tool SDT2 and go to TCM and see up/Down paddle shifter status while pressing them
and then road tested it worked great and it feels good
Last edited by SAEED_KIZZY on Thu Jul 22, 2021 5:09 pm, edited 1 time in total.
-
SAEED_KIZZY
- Posts: 564
- Joined: Wed Sep 13, 2017 2:31 pm
-
SAEED_KIZZY
- Posts: 564
- Joined: Wed Sep 13, 2017 2:31 pm
quick update:
it turns out the paddle shifter has a build-in LED for clearance mode pin 1: Negative and pin 4: Positive also needed to wire and backlight for the paddle shifter also activated
it turns out the paddle shifter has a build-in LED for clearance mode pin 1: Negative and pin 4: Positive also needed to wire and backlight for the paddle shifter also activated
