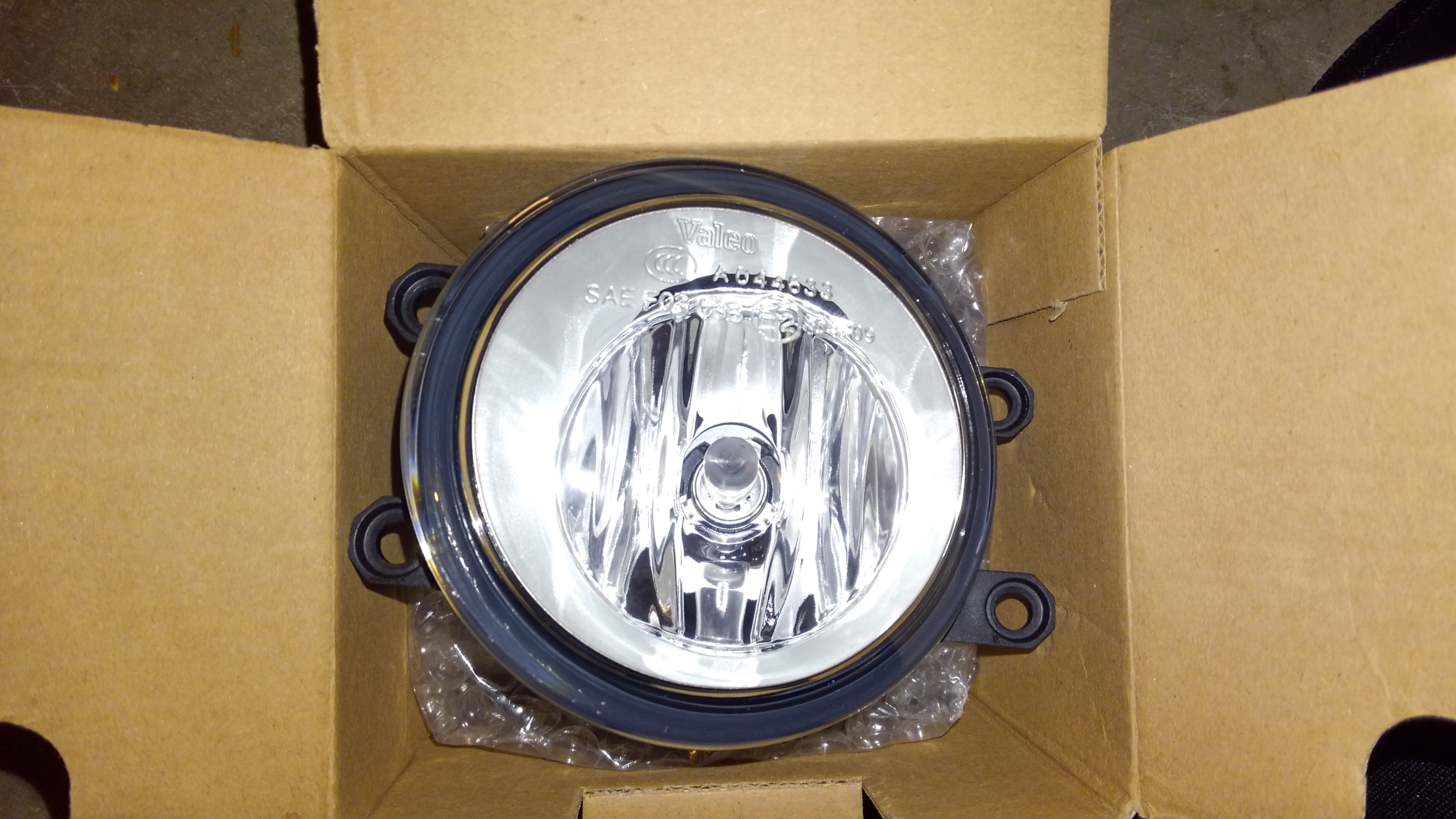

I fixed my driver's side fog light that was shattered during the cross-country trip. I found a replacement fog light on eBay sold by a seller who specializes in OE Valeo parts. Valeo is the OEM of the Kizashi's fog light. By searching the Kizashi's fog light's Valeo number, I was able to determine that the same fog light is used in a number of Toyota models including the Yaris. This allowed me to find brand new fog lights for the Yaris for cheaper than used fog lights from totaled Kizashis. I was a little worried about 100% compatibility, but the design looked exactly the same and the fog lights had the same Valeo number. Having now installed it, I can say that they are nearly identical products with all the same features and country of origin (Belgium). They are 100% compatible. These also come with a brand new H11 halogen bulb and look to be direct OE replacements.
The eBay vendor I used is this one: https://www.ebay.com/usr/sixityauto



Keep in mind that the Right Hand side fog light differs from the Left Hand side so the part numbers will reflect that. Given that the Yaris uses the same fog light for the same model years, just find one for the Yaris for either the RH or LH side.

Given I have HID bulbs for the fog lights. I inspected the HID bulb for any damage and then cleaned it with rubbing alcohol.



For the replacement of the fog light, here are the steps:

1. Remove the front bumper. You'll probably want to lift the car with ramps or jacks to make it easier. Details on bumper removal here: https://www.kizashiclub.com/forum/viewtopic.php?f=32&t=2861

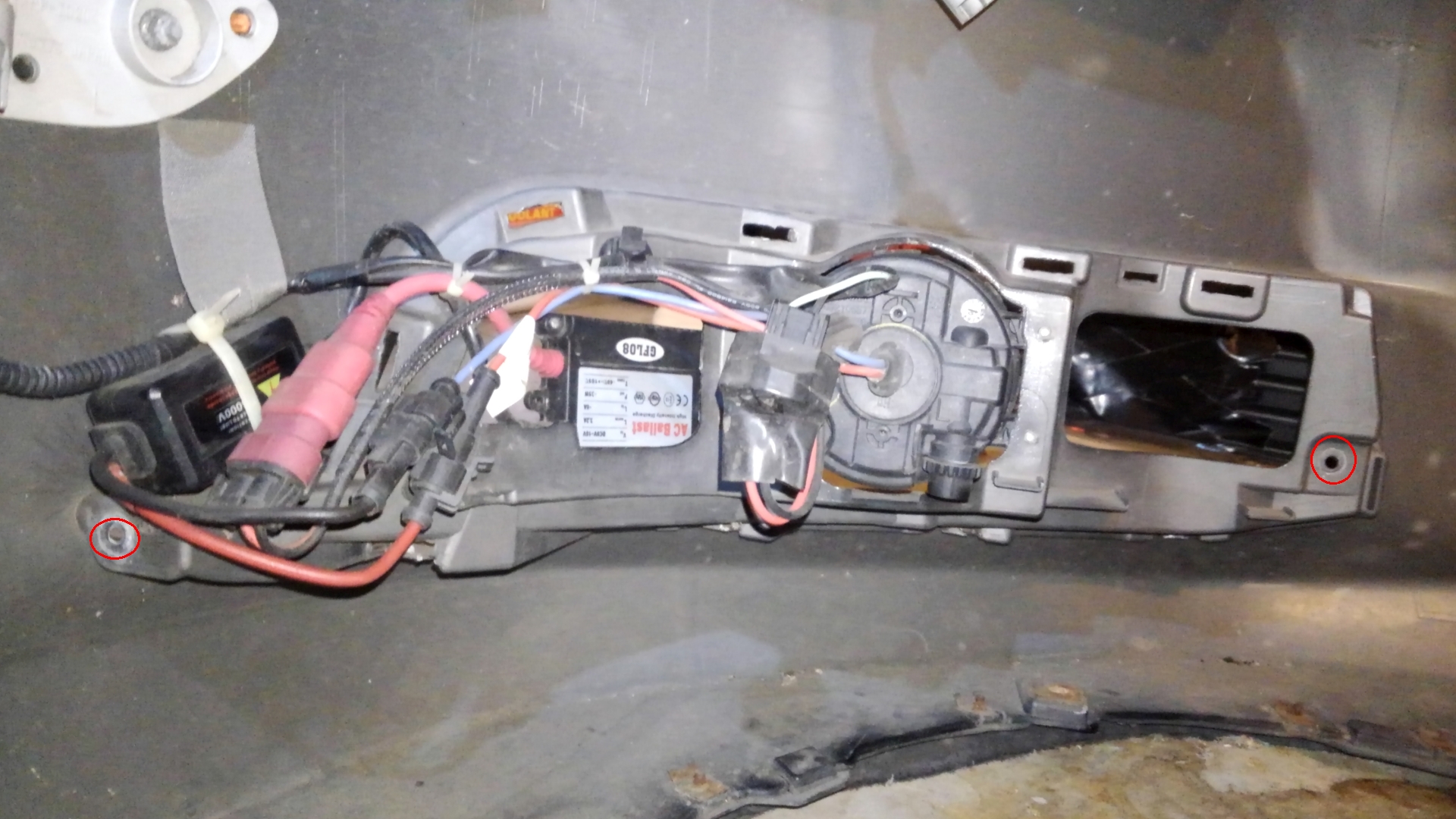

2. Once the bumper is completely off, disconnect the fog light bulb from the harness and remove it. Then find the two screws that keep the black plastic and silver chrome trim piece to the back of the bumper. There are 2 screws, one on each side. They are circled below. Remove them and then carefully work the tabs to loosen the trim piece from the bumper. It's not that easy. The chrome piece and the black trim come off together as one.
back of bumper.jpg
back of bumper.jpg (1 MiB) Viewed 4448 times

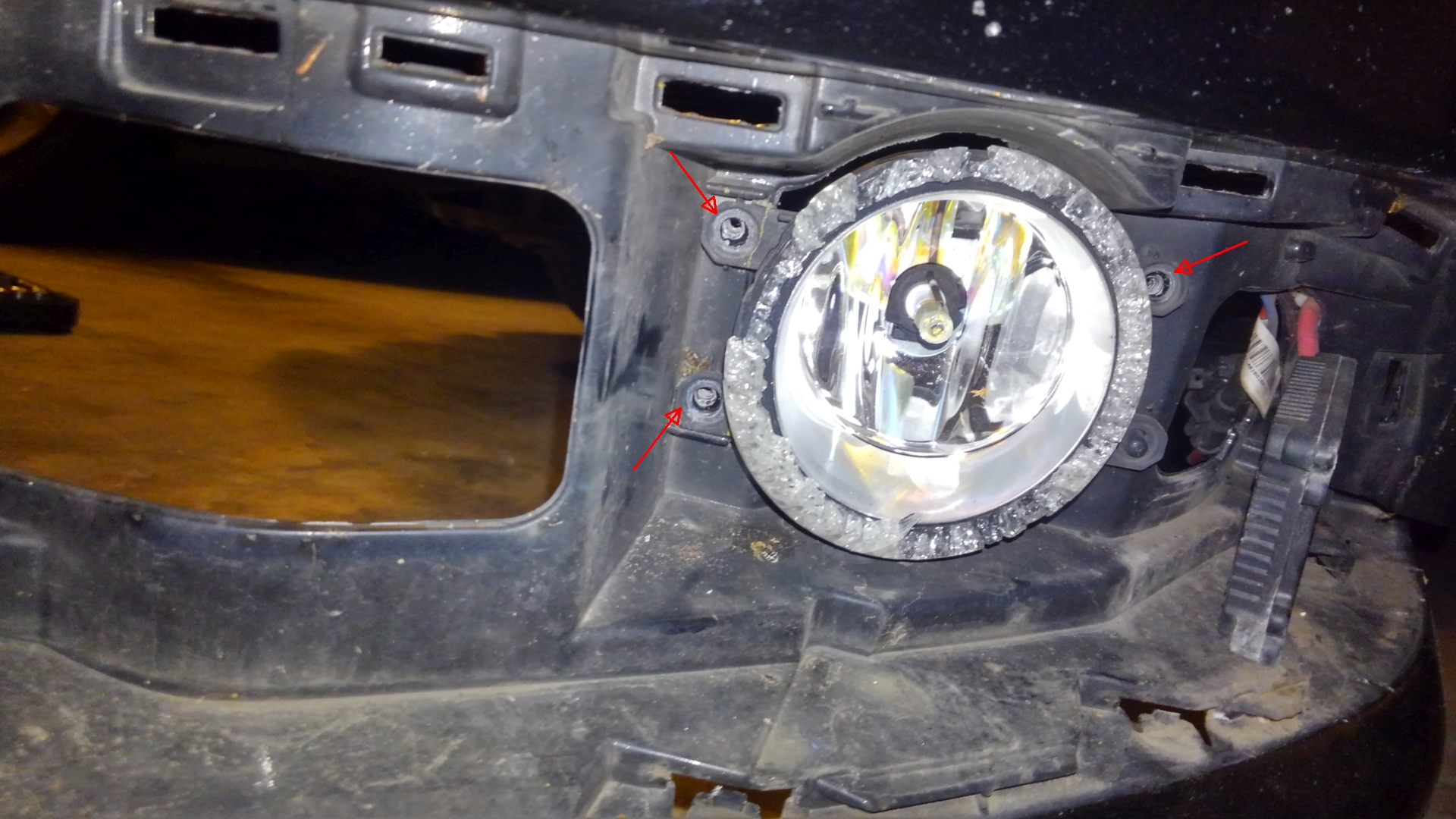

3. Once that trim is off, you will have access to the 3 screws that hold the fog light to the bumper. Remove all three (indicated below). There are 4 brackets, but one is held by a tab instead of a screw.
front of fog light.jpg
front of fog light.jpg (1.13 MiB) Viewed 4448 times


4. The fog light should come off easily at this point.

5. Installation is the reverse.

6. Adjust the fog light aim using the black bezel on the bottom. However, it only adjusts the aim vertically. If the aim is still off, you may need to adjust the fog light's fit with the 3 screws that hold it to the bumper. Details on fog light aiming here: https://www.kizashiclub.com/forum/viewtopic.php?f=32&t=2329

Conclusion:

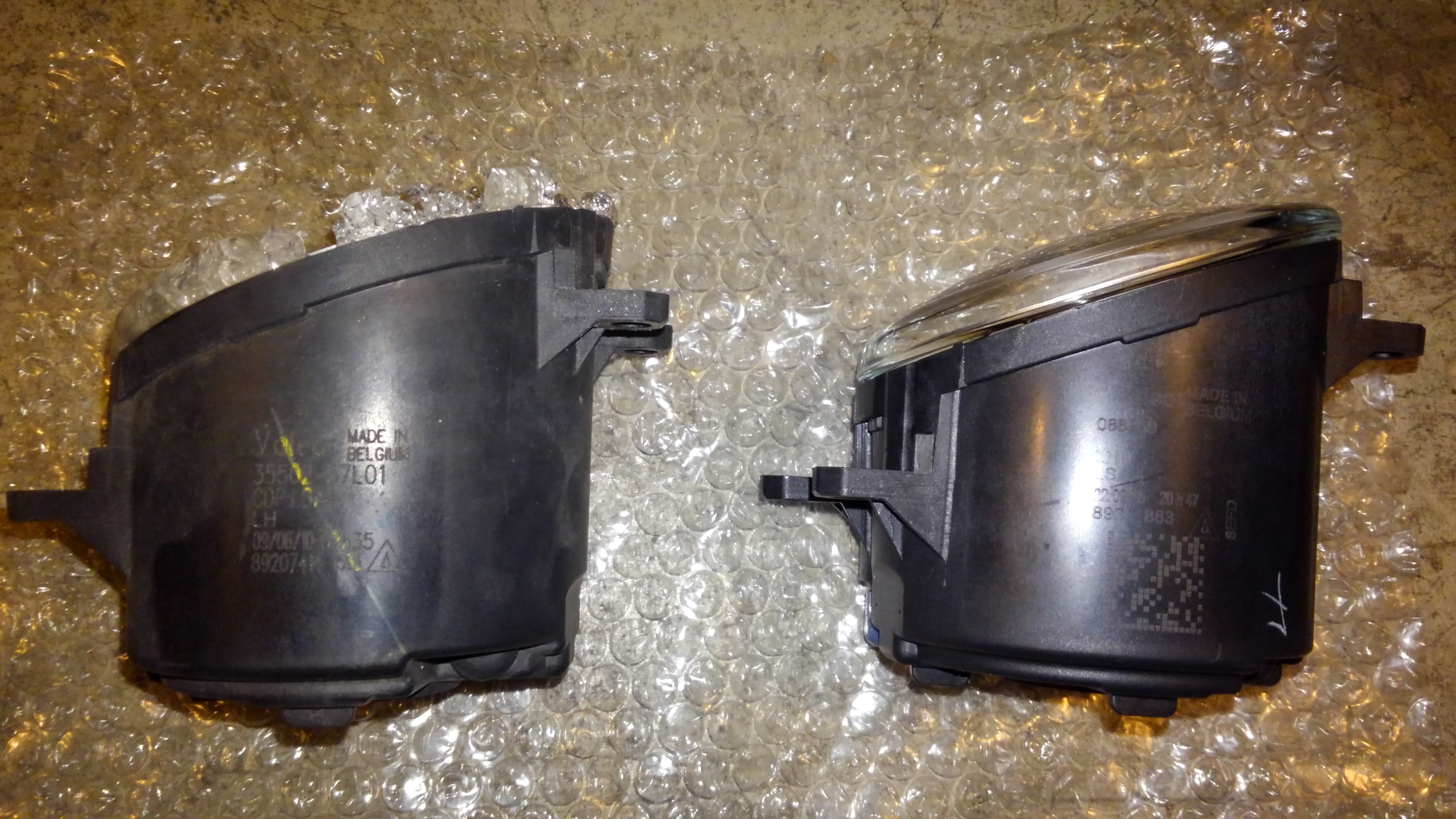

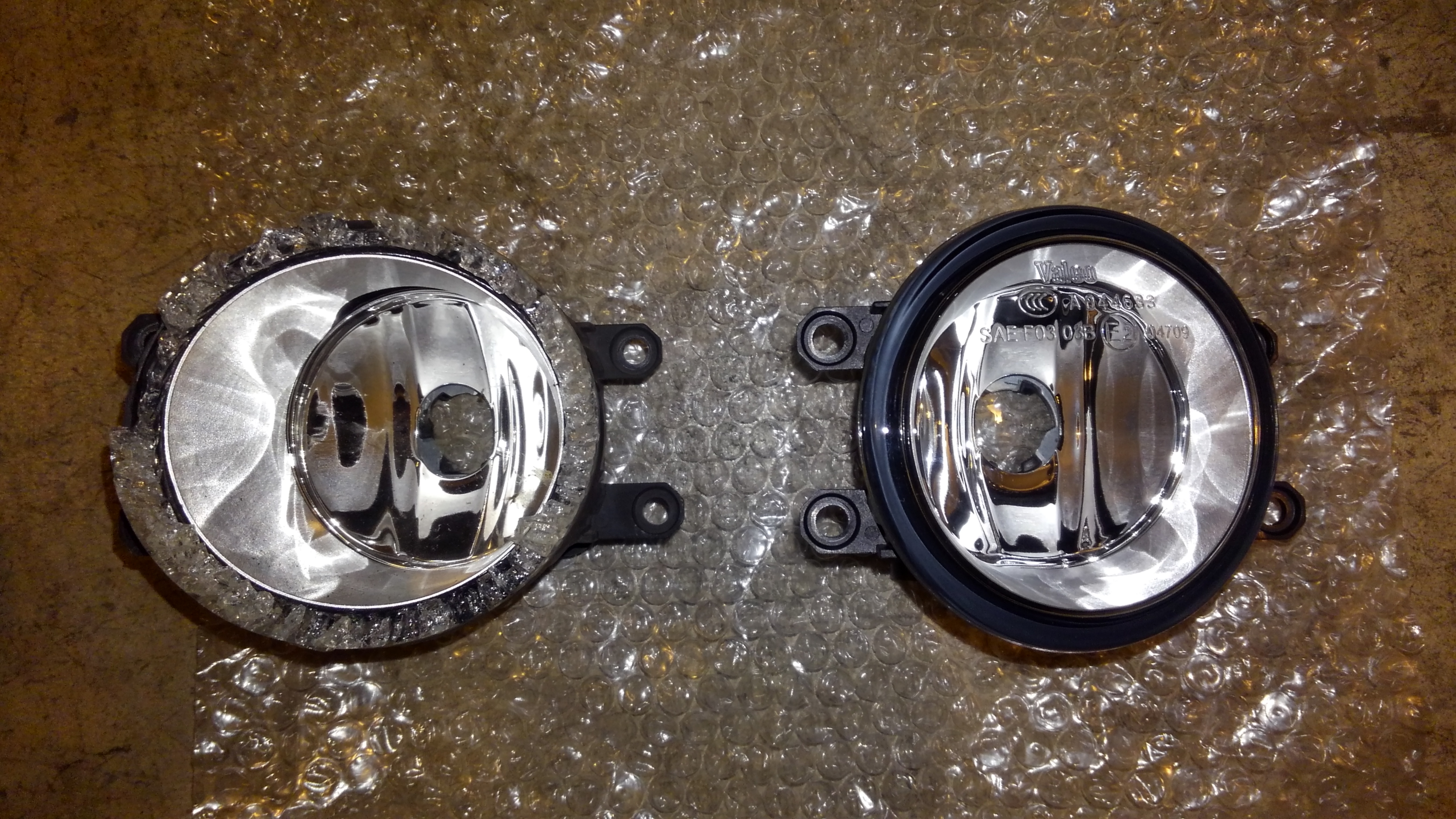

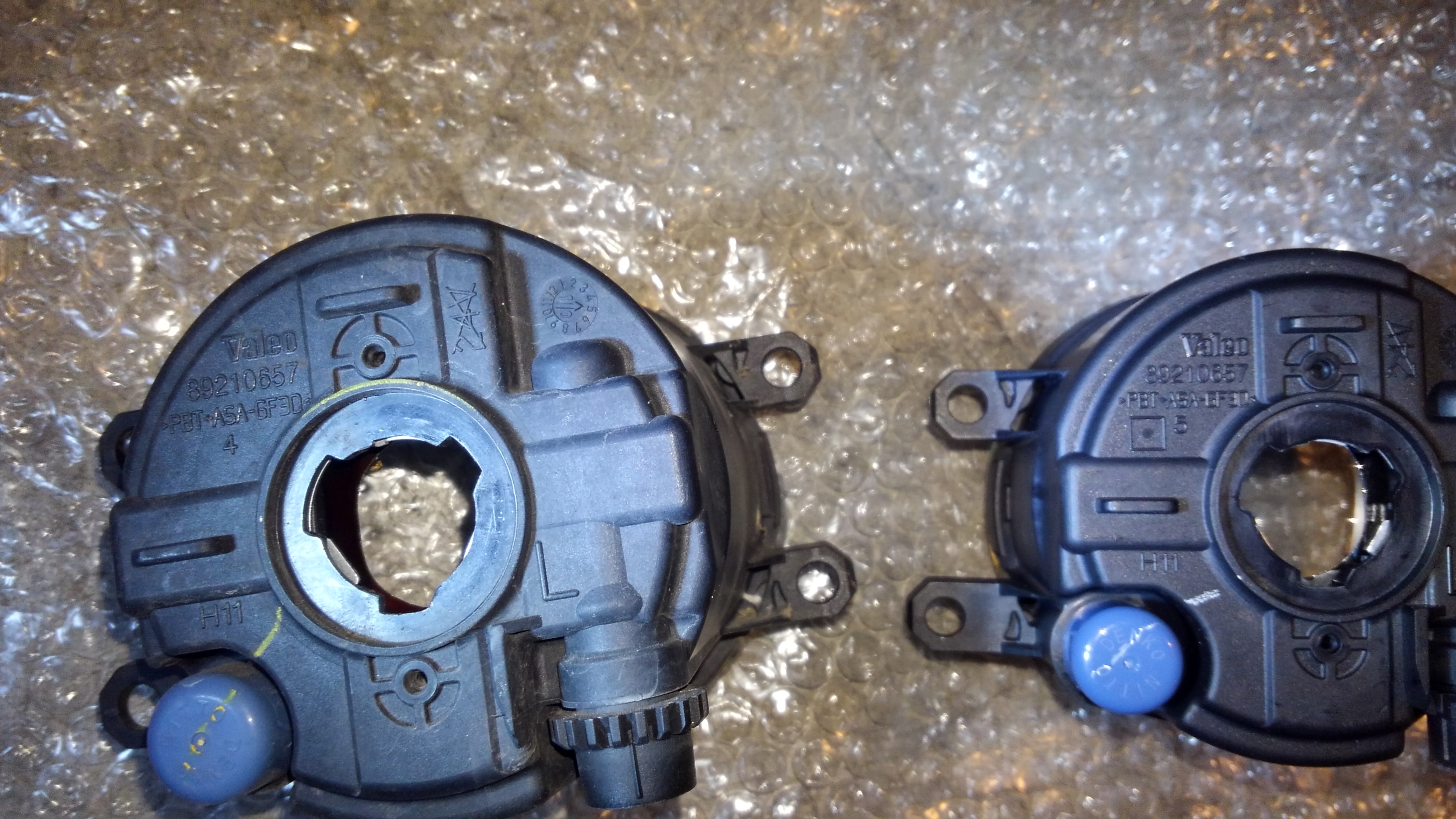

This replacement fog light sold for the Yaris is a 100% compatible replacement product for the Kizashi's fog light. It's nearly identical except for a few printed parts on the item. The Valeo parts numbers match and the fit is the same. It seems that the replacement has a thicker glass lens but I'll have to inspect it more carefully to determine that. I didn't have the time to adjust the aim, but so far the fog light works well and casts the same output pattern as the other original fog light.
If your fog light shatters, cracks, gets heavily pitted, or floods inside with water, replacement fog lights can be had quite easily by buying one for a Toyota Yaris.






 #45239  by Ronzuki
 Sun Oct 01, 2017 4:05 pm
Nice. This is good info to sticky. btw what's up w/ your plastic surrounding the light?
 #45241  by KuroNekko
 Sun Oct 01, 2017 5:06 pm
Ronzuki wrote:Nice. This is good info to sticky. btw what's up w/ your plastic surrounding the light?


That's residue from the duct tape. I didn't get a chance to remove it yet.
 #45361  by LPSISRL
 Wed Oct 04, 2017 2:56 pm
What are your bulb temps with your fogs and headlights? It looks like mine with factory fogs and HIDs for the headlights.
 #45363  by LPSISRL
 Wed Oct 04, 2017 3:11 pm
Found some on Amazon for less than $30. It lists them as Yaris/RAV4/Camry.
You can also get them from rockauto.com
If they are the same fit, we're pretty much set on being able to get replacements as they are the same as some of the most common cars in the world. Ironic since we own one of the most rare. Especially in the US.
 #45366  by KuroNekko
 Wed Oct 04, 2017 7:18 pm
LPSISRL wrote:Found some on Amazon for less than $30. It lists them as Yaris/RAV4/Camry.
You can also get them from rockauto.com
If they are the same fit, we're pretty much set on being able to get replacements as they are the same as some of the most common cars in the world. Ironic since we own one of the most rare. Especially in the US.


Be careful with the cheap ones listed on Amazon. Those are likely Chinese-made knock-offs that may use plastic lenses instead of glass. You want glass instead of plastic given plastic will sustain a lot more pitting and damage than glass from regular road debris. While plastic may not shatter like glass, it still won't likely survive an impact that destroys a glass lens.

It's good to see them sold on rockauto.com for the Yaris. I didn't even think of checking there after seeing they didn't have fog lights for the Kizashi. I went on eBay to do some cross-referencing and got my fog light from the most promising place. While rockauto.com's price is cheaper for a Valeo fog light, the eBay vendor offered free shipping, closing the final price gap closer and it arrived in a few days. Regardless, finding a fog light for a 2011 Toyota Yaris is much much easier than finding one for a Kizashi despite them being identical.
 #45369  by KuroNekko
 Wed Oct 04, 2017 7:30 pm
LPSISRL wrote:What are your bulb temps with your fogs and headlights? It looks like mine with factory fogs and HIDs for the headlights.


Low Beams: 5000K HID.
Fog Lights: 3000K HID.

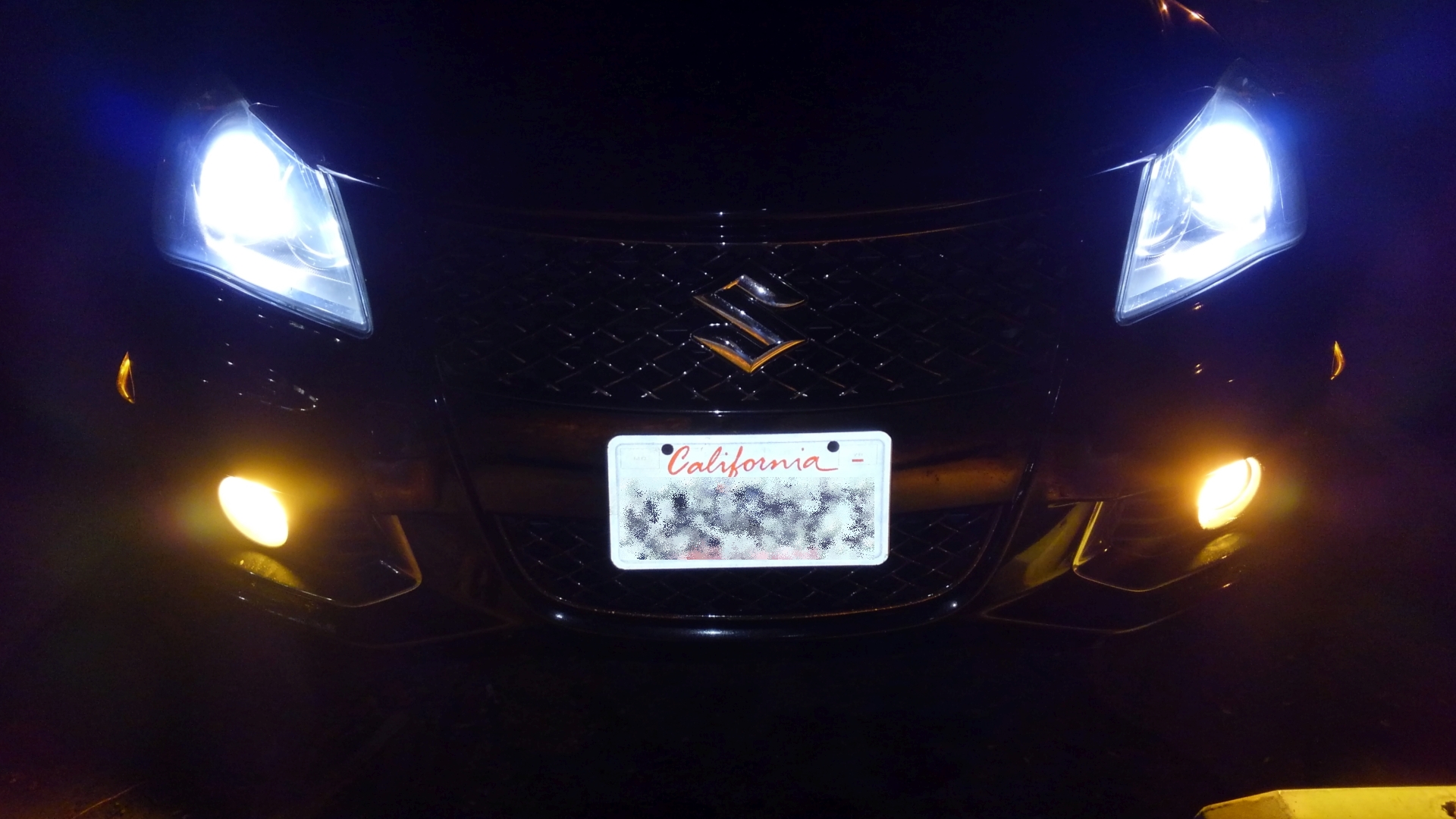

While the photo may make the fog lights look like halogens, in person, they are vastly different. The HIDs give out a concentrated golden yellow color that I haven't seen any halogen put out. They are also brighter than halogens and do a better job of illuminating the sides of the road.
